OM4 Fiber Optic cable

December 30, 2015

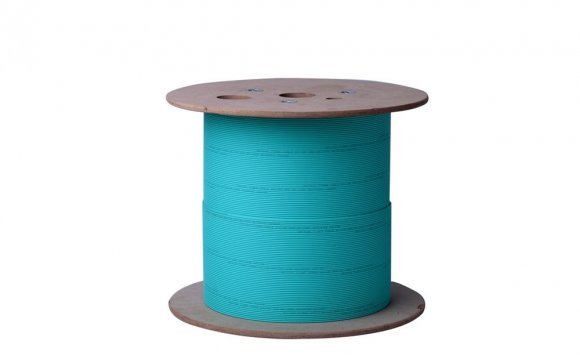

500 Meter Multimode (OM4) Bulk

Multimode fibers are identified by the OM (“optical mode”) designation as outlined in the ISO/IEC 11801 standard.

  • OM1, for fiber with 200/500 MHz*km overfilled launch (OFL) bandwidth at 850/1300nm (typically 62.5/125um fiber)

  • OM2, for fiber with 500/500 MHz*km OFL bandwidth at 850/1300nm (typically 50/125um fiber)

  • OM3, for laser-optimized 50um fiber having 2000 MHz*km effective modal bandwidth (EMB, also known as laser bandwidth), designed for 10 Gb/s transmission.

  • OM4, for laser-optimized 50um fiber having 4700 MHz*km EMB bandwidth designed for 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.

Reach and modal bandwidth


Fiber Types and Reach

Fiber Type

Bandwidth*Length

Product (MHz*km or GHz*m)

10GBASE-SR Distance (meters)

40GBASE-SR4 and 100GBASE-SR10 Distance (meters)

OM1

160-200

33

N/A

OM2

400-500

82

OM3

2000

300

100

OM4

4700

400

150
